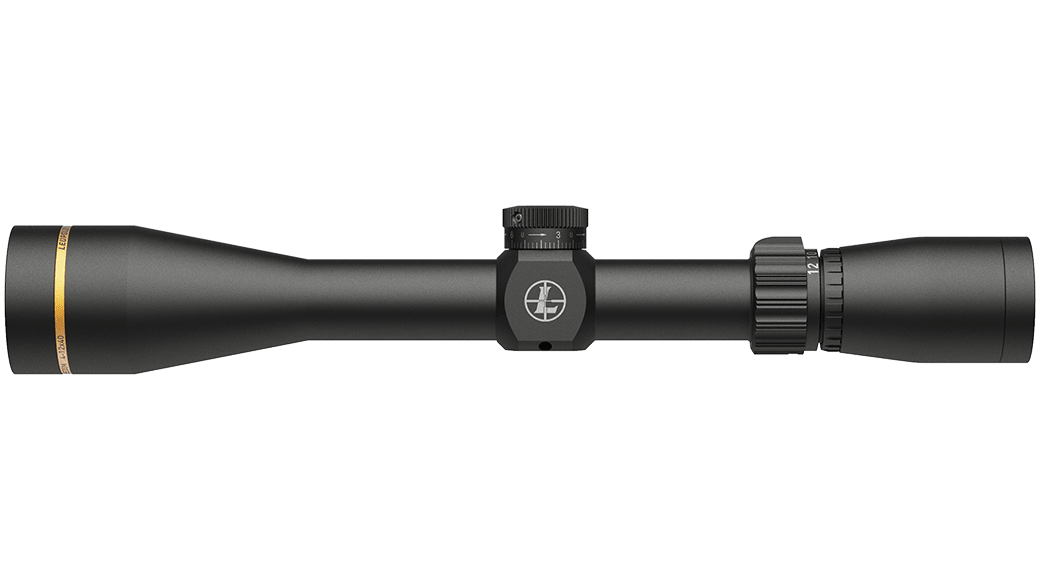

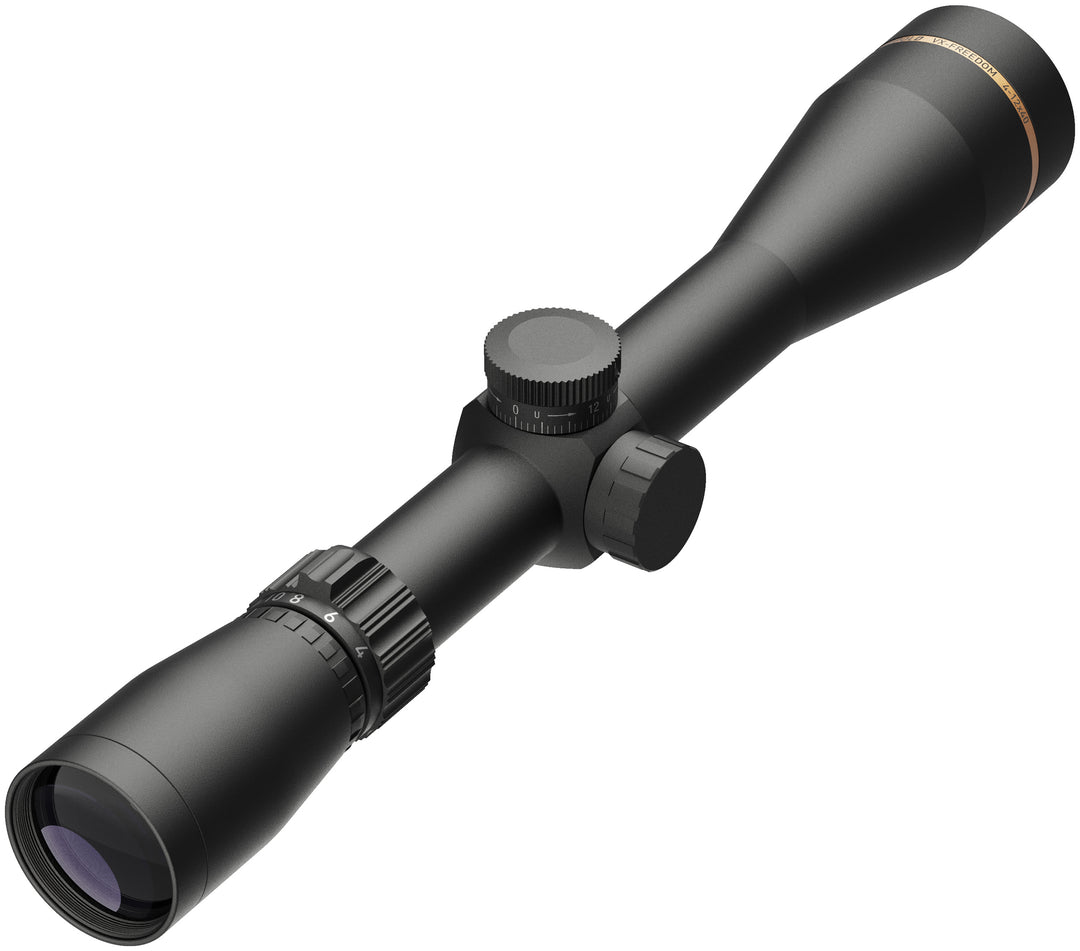

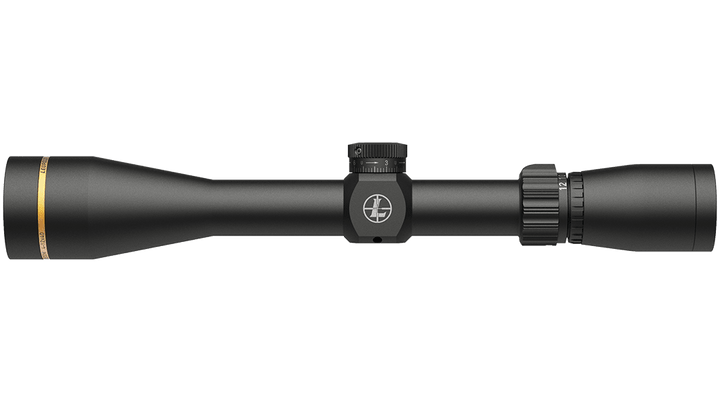

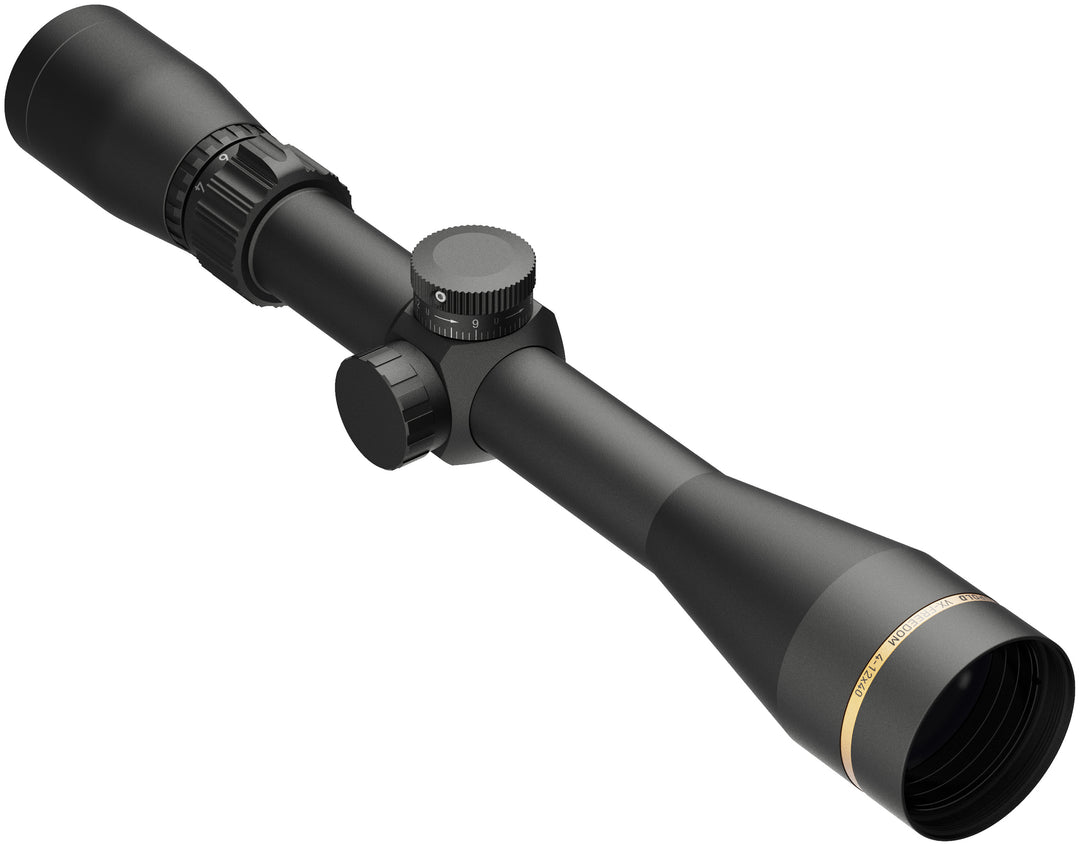

Leupold VX-Freedom 4-12X40 CDS Tri-MOA #180601

The VX®-Freedom® 4-12x40mm delivers legendary Leupold® performance and dependability in a versatile magnification range that’s ideal for mid to longer-range shots. It’s also equipped with the Leupold® Custom Dial System® (CDS), which gives you a customizable ballistics solution at your fingertips.

Built around Leupold's Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.

The VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

FEATURES

3:1 Zoom Ratio

A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.

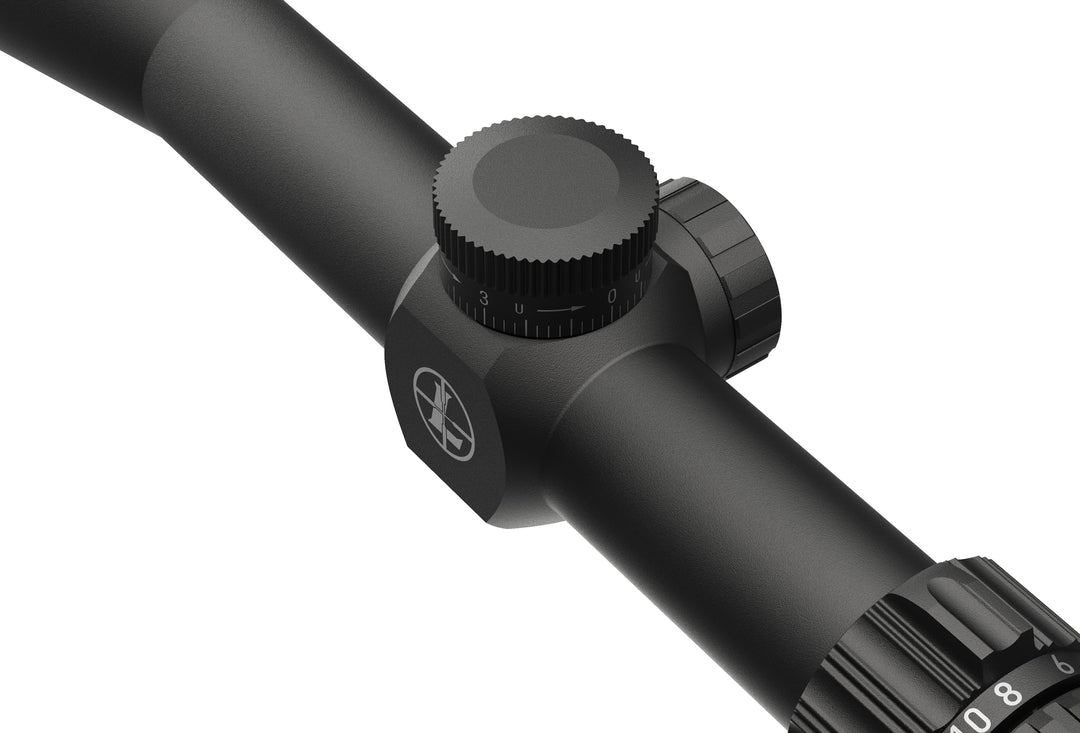

Custom Dial System

Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.

Custom Dial Compatible

Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.

Lockable Eyepiece

A traditional eyepiece lock ring allows you to lock in a focus setting that is best for your eye.

Advanced Optical System

Leupold’s Advanced Optical System offers tried and true light transmission for extended glassing sessions, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.

Scratch Resistant Lenses

Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.

Zero Stop

The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.

SPECIFICATIONS

Adjustable Objective No

Side Focus No

Reticle Focal Plane Second Focal Plane

Elevation Adjustment Type CDS

Locking Dial No

Revolution Indicator No

Rezero Type Set Screw

Windage Adjustment Type Finger Click

BDC Dial Included No

Reticle Type Second Focal Plane

Reticle Tri-MOA

Magnification Type Variable

Illuminated No

Nightvision Compatible Illumination No

Daylight Bright Illumination No

Motion Sensor Technology (MST) No

Electronic Reticle Level No

Guard-ion Lens Coating No

Weight (oz) 13.1

Elevation Adjustment Value per Click 1/4MOA

Elevation Adjustment Range (MOA) 80

Elevation Adjustment Range (MIL) 23

Elevation Adjustment Range (cm @ 100m) 233

Elevation Adjustment Per Revolution 15 MOA

Elevation Dial Travel Limit 14MOA

Windage Adjustment Value per Click 1/4MOA

Windage Adjustment Range (MOA) 80

Windage Adjustment Range (MIL) 23

Windage Adjustment Range (cm @ 100m) 233

Windage Adjustment Per Revolution 15 MOA

Magnification Max 12

Magnification Min 4

Objective Lens Diameter (mm) 40

Linear FOV Low Mag (ft@100yds) 21.5

Linear FOV High Mag (ft@100yds) 10

Angular FOV Low Mag (Degrees) 4.1

Angular FOV High Mag (Degrees) 1.9

Eye Relief Low Mag (in) 4.9

Eye Relief High Mag (in) 3.7

Fixed Parallax-Free Distance (yd) 150
