Leupold VX-3HD 3.5-10x40 CDS-ZL 1" Duplex Reticle #180617 #180617
Regular price $1,099.99The VX®-3HD 3.5-10x40mm delivers legendary performance and extreme clarity in an incredibly tough, lightweight package. Its versatile magnification can get the job done in almost any scenario.
The VX-3HD delivers outstanding performance in low light. With Leupold’s Elite Optical System, the VX-3HD delivers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand. We also gave it match-grade repeatability and ergonomic controls that are easy to read and use, even with gloves. The VX-3HD is the best lightweight, low-light hunting scope in its class. And with its low-profile, one-revolution CDS® ZeroLock® dial, you can be confident your dial will only move when you want it to. Push the button to unlock it, dial, and then rotate it back to zero to lock it in place. It’s that simple.
Everything we put into your VX-3HD is there to help you tag out. Like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
Features
3:1 zoom ratio
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
Custom Dial System
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.

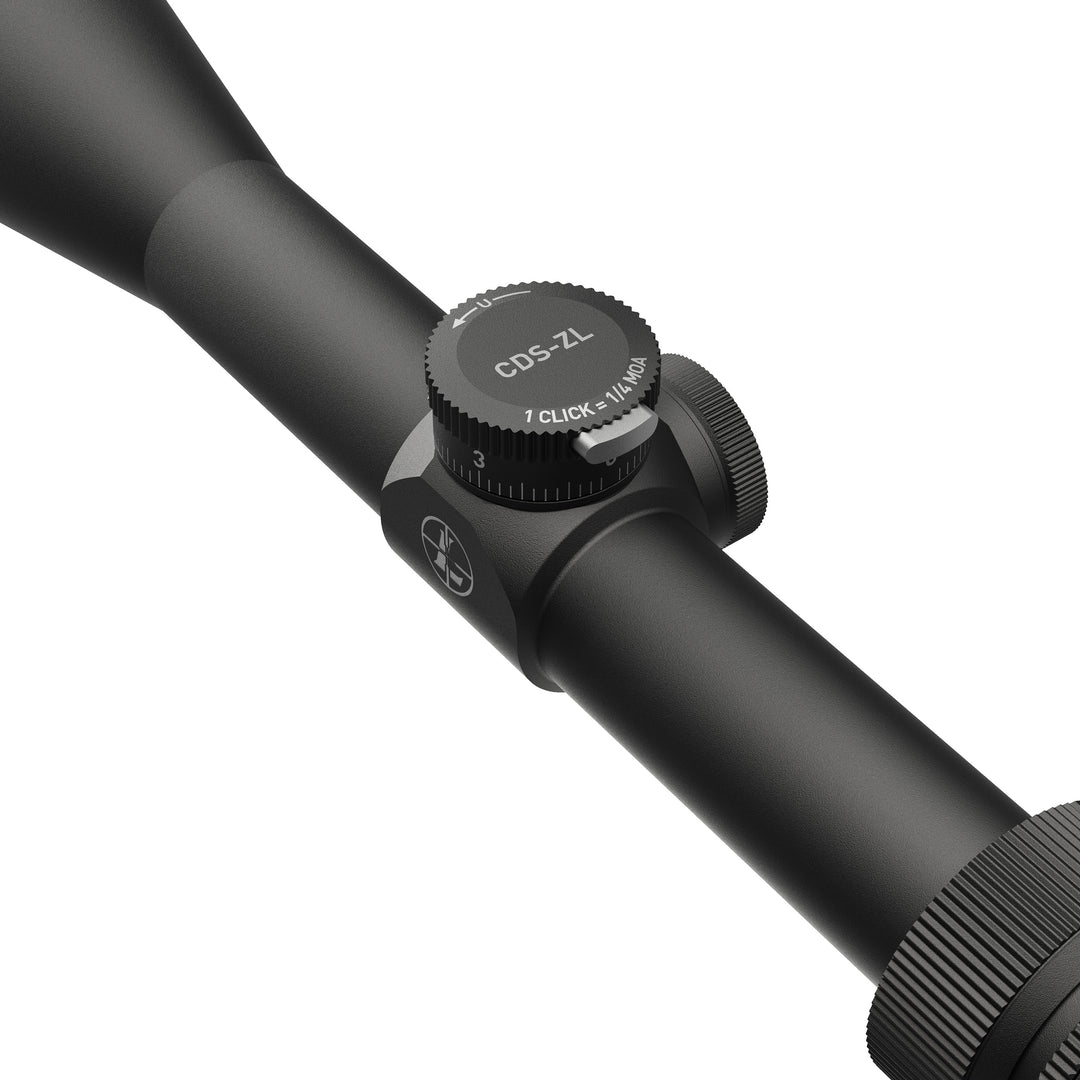

ZeroLock Dial
The ZeroLock® system eliminates accidental dial movement by locking it in place.
High Definition
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
Scratch Resistant Lenses
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
Elite Optical System
Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
Lockable Eyepiece
A traditional eyepiece lock ring allows you to lock in a focus setting that is best for your eye.
Specifications
| Badge | New |
|---|---|
| Adjustable Objective | No |
| Side Focus | No |
| Reticle Focal Plane | Second Focal Plane |
| Elevation Adjustment Type | CDS-ZL |
| Locking Dial | Yes |
| Revolution Indicator | No |
| Rezero Type | Set Screw |
| Windage Adjustment Type | Finger Click |
| Custom Dial Compatible | Yes |
| BDC Dial Included | No |
| Reticle Type | Second Focal Plane |
| Reticle | Duplex |
| Magnification Type | Variable |
| Illuminated | No |
| Nightvision Compatible Illumination | No |
| Daylight Bright Illumination | No |
| Motion Sensor Technology (MST) | No |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Weight (oz) | 13.1 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 55 |
| Elevation Adjustment Range (MIL) | 16 |
| Elevation Adjustment Range (cm @ 100m) | 160 |
| Elevation Adjustment Per Revolution | 15 MOA |
| Elevation Dial Travel Limit | 14.5MOA |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 55 |
| Windage Adjustment Range (MIL) | 16 |
| Windage Adjustment Range (cm @ 100m) | 160 |
| Windage Adjustment Per Revolution | 15 MOA |
| Magnification Max | 10 |
| Magnification Min | 3.5 |
| Objective Lens Diameter (mm) | 40 |
| Linear FOV Low Mag (ft@100yds) | 29 |
| Linear FOV High Mag (ft@100yds) | 11 |
| Angular FOV Low Mag (Degrees) | 5.5 |
| Angular FOV High Mag (Degrees) | 2.1 |
| Eye Relief Low Mag (in) | 4.4 |
| Eye Relief High Mag (in) | 3.6 |
| Fixed Parallax-Free Distance (yd) | 150 |
Detailed Reticle Information
DUPLEX®
- Invented in 1962 by Leupold®
- Defined by heavy posts
- Stands out against cover in low light
- Quick target acquisition with thin lines at the center
- Most popular reticle in the world
-
Rear (second) focal plane
