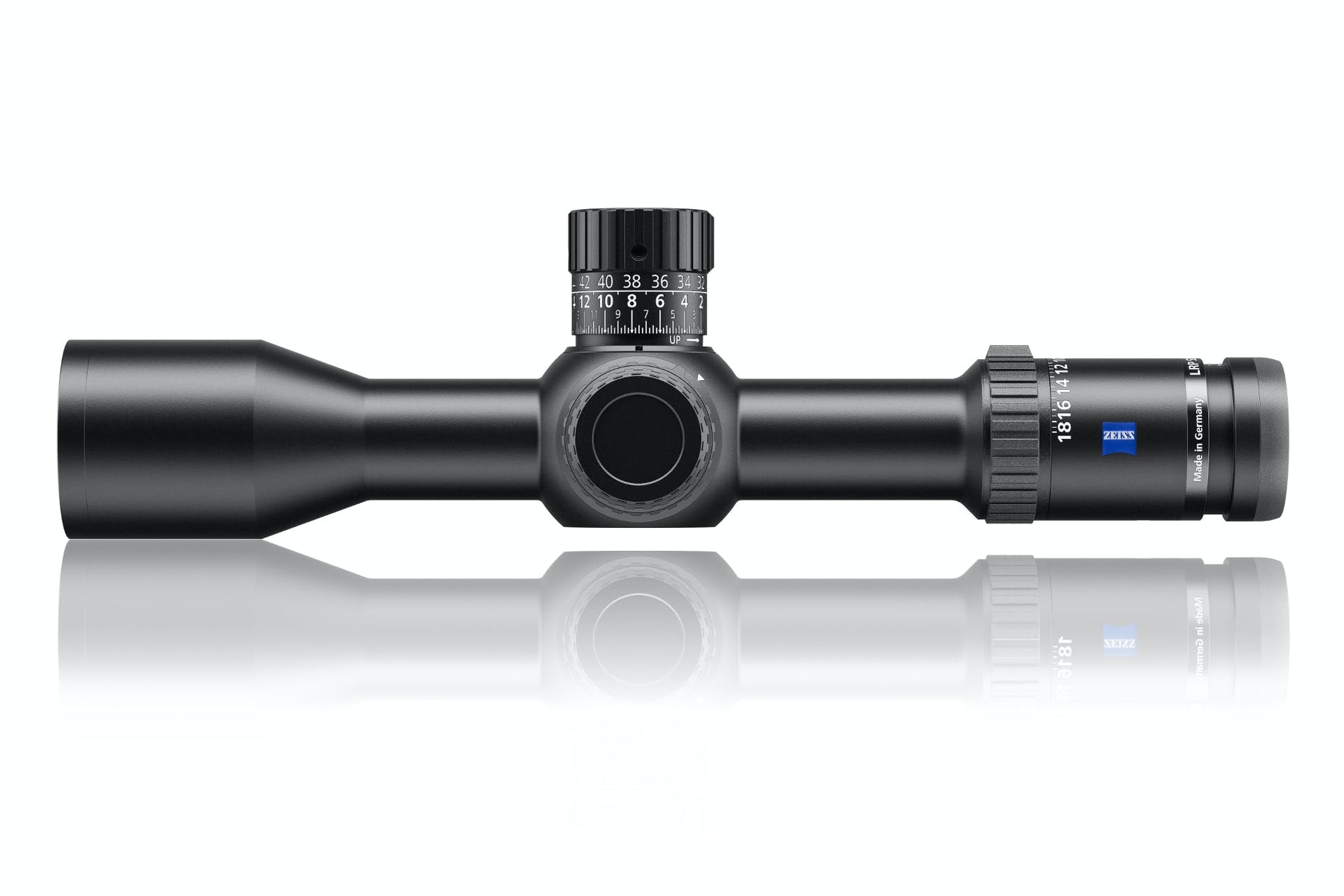

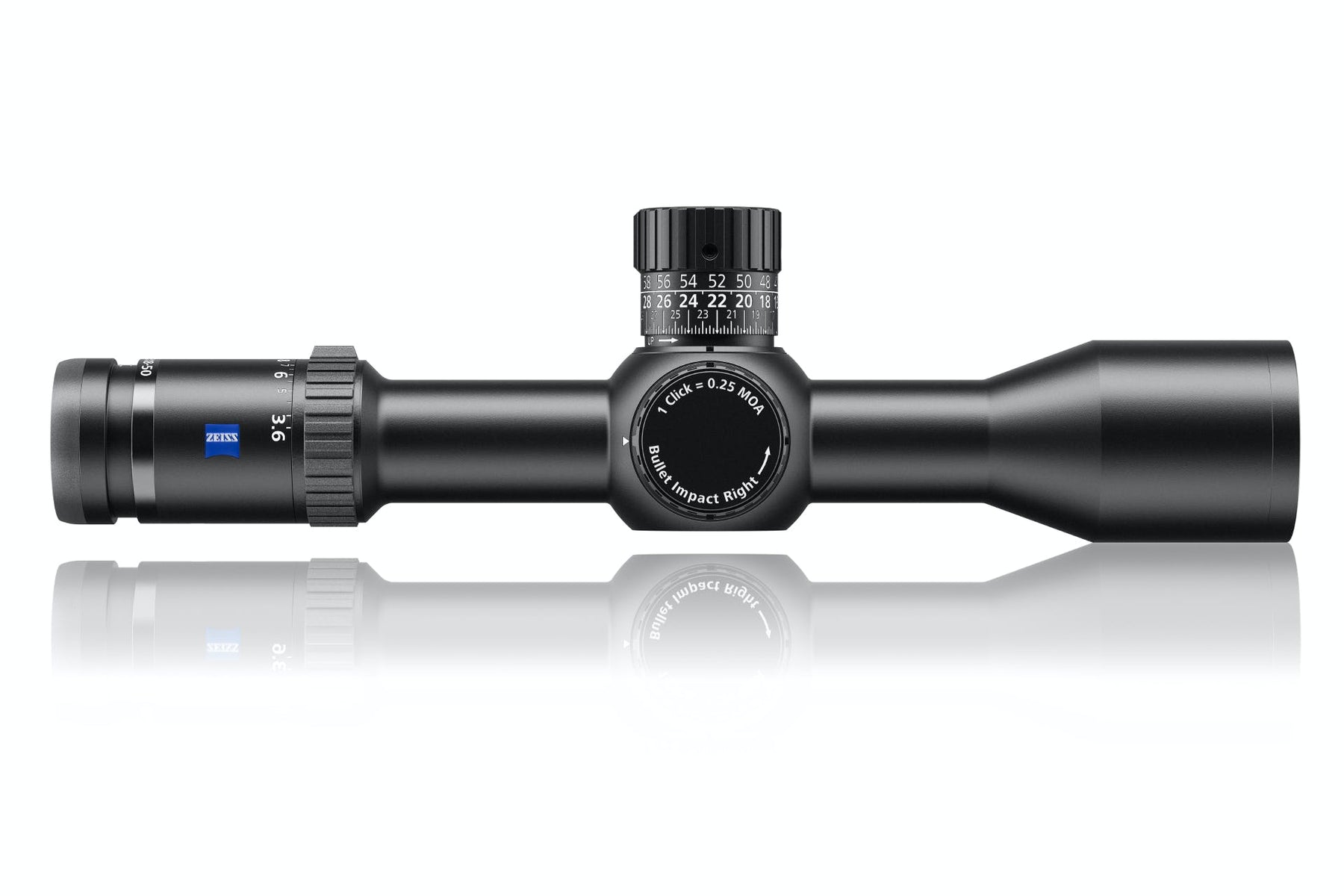

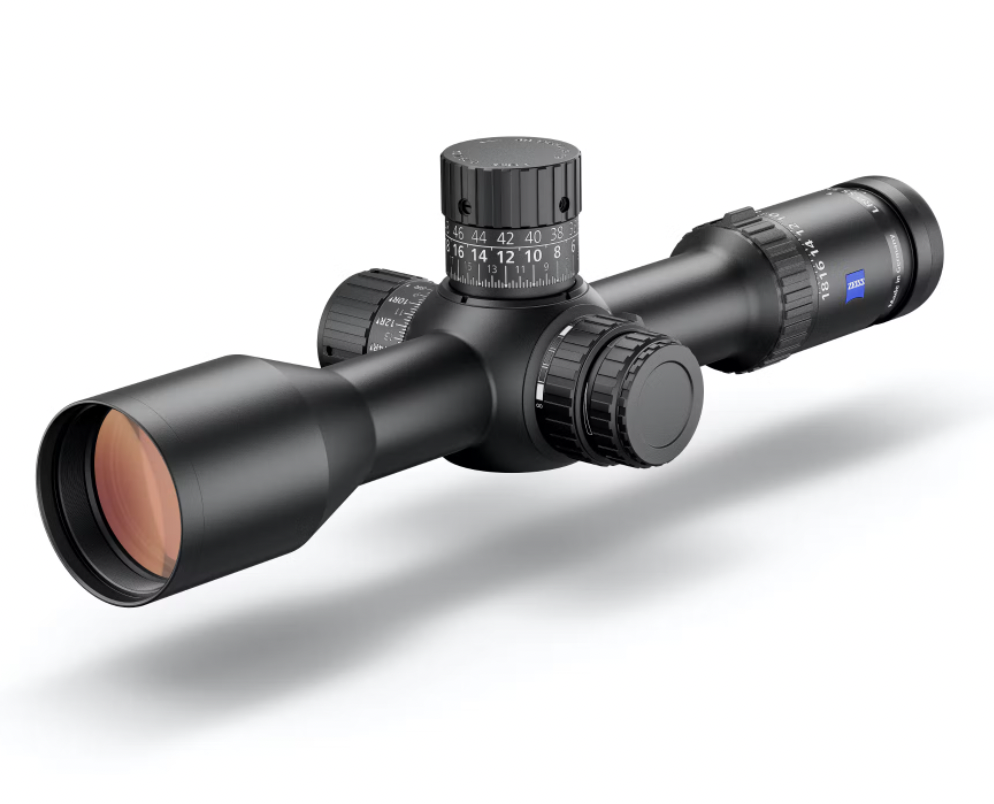

Zeiss LRP S5 3-18x50 ZF-MOAi
Regular price $5,899.00The ZEISS LRP S5 318-50 is a first focal plane riflescope with a 34 mm main tube, and provides a massive amount of total elevation travel out-of-the-box, which allows the shooter to engage targets to 1,500 yards | 1,375 meter - and beyond. When used in PRS and NRL type competitions, the riflescope will give you the edge to not just compete - but to win. This model is available in both Milliradian and Minute-of-Angle configurations.
It's perfect for precision rifle competition; and it is the preferred choice on rifle platforms calling for a more compact optic with excellent performance characteristics. With an extremely large field-of-view, the ZEISS LRP S5 3-18x50 is also ideal for general target shooting, varmint and predator hunting, and long-range hunting.
Best-in-class total elevation travel
A massive total elevation travel of 40.7 MRAD or 140 MOA allows the ZEISS LRP S5 to be more capable than your ammunition – and engage targets up to 1,500 yards and beyond out-of-the-box.
Daylight visible illuminated reticle
Digitally controlled diffractive reticle illumination technology delivers an exceptionally bright point of aim – regardless of the amount of incoming light – allowing you to confirm precise shot placement on target.

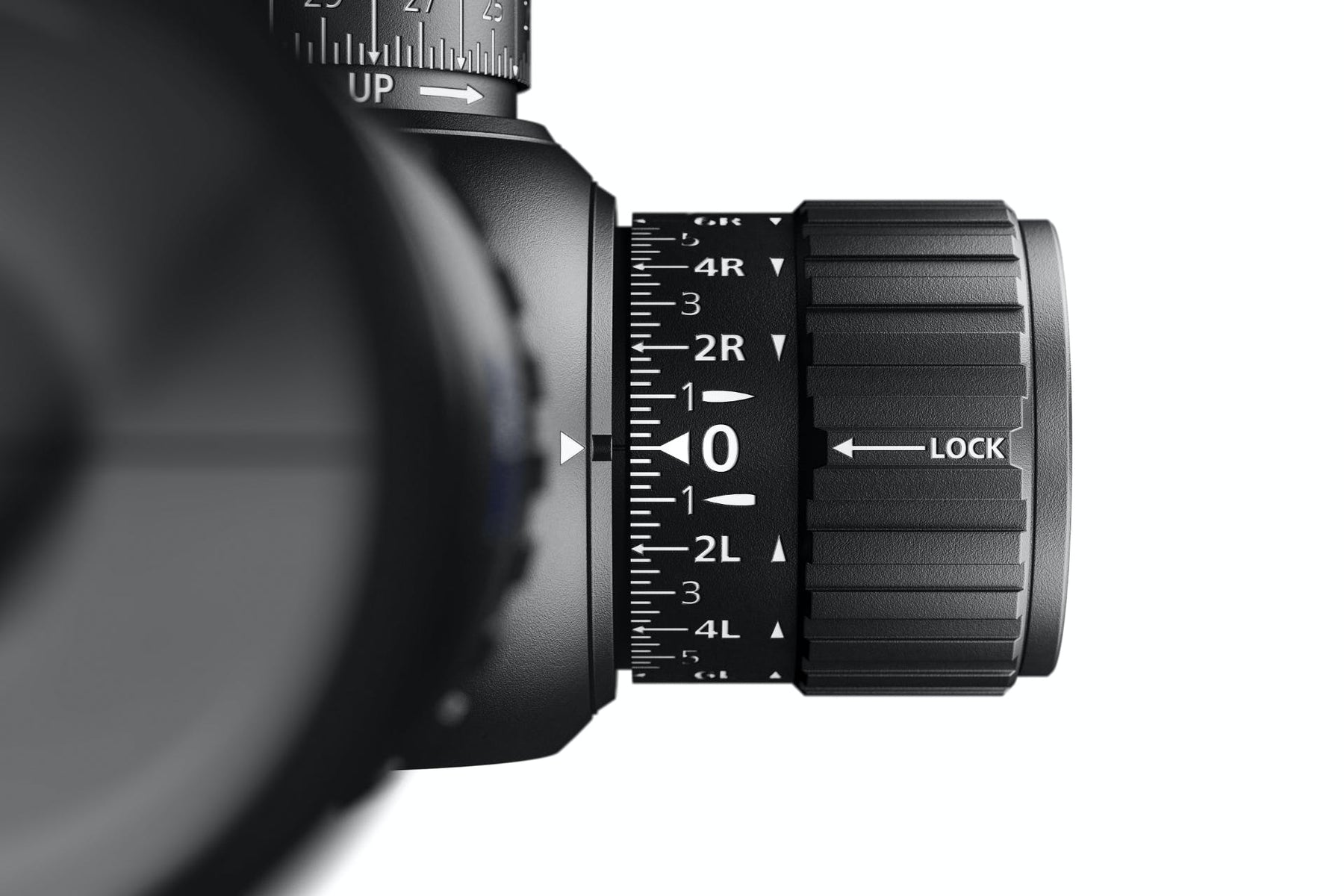

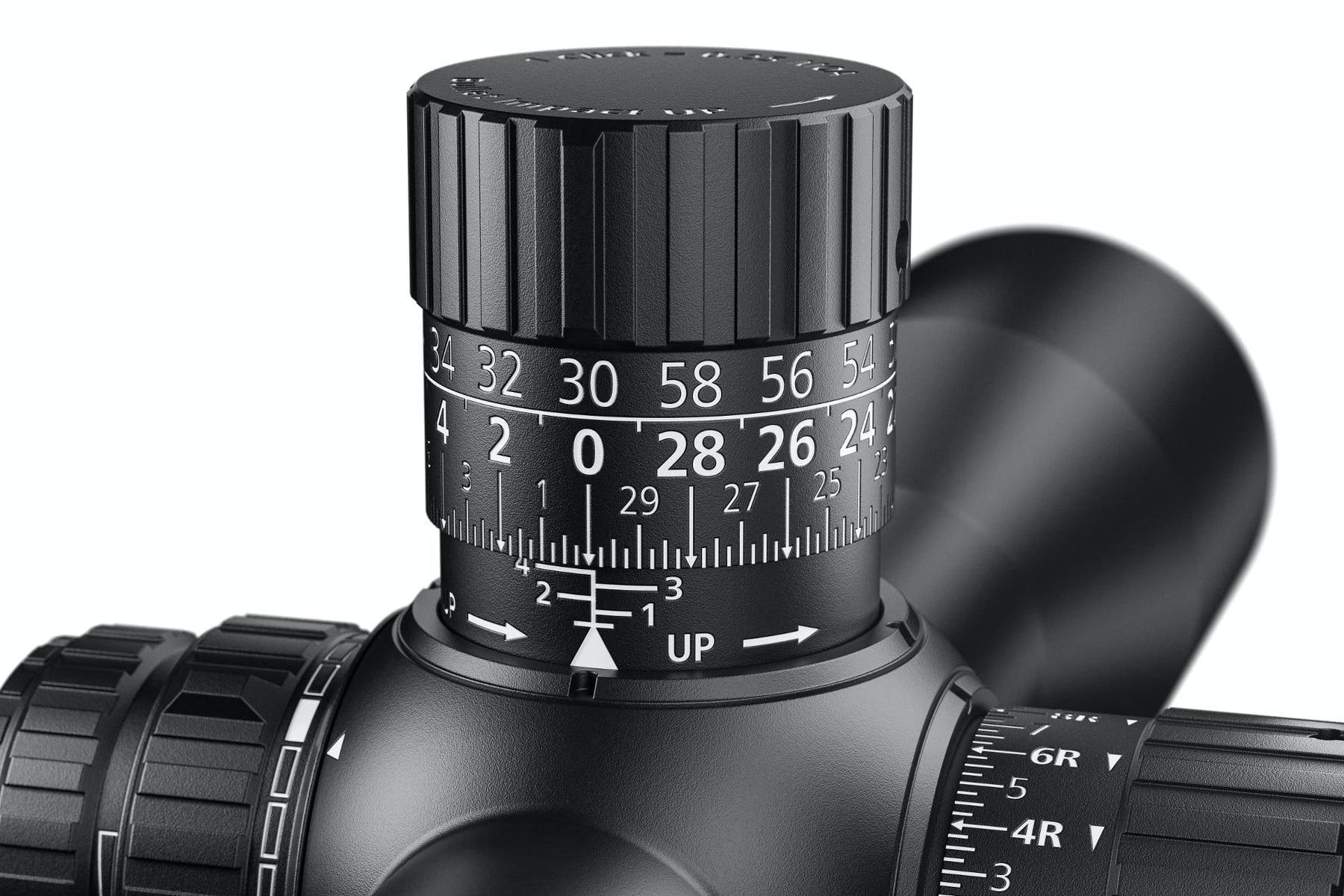

Highly repeatable and tactile turrets
Precise adjustments provide you with absoluteassurance of making the most accurate shotspossible – regardless of distance.

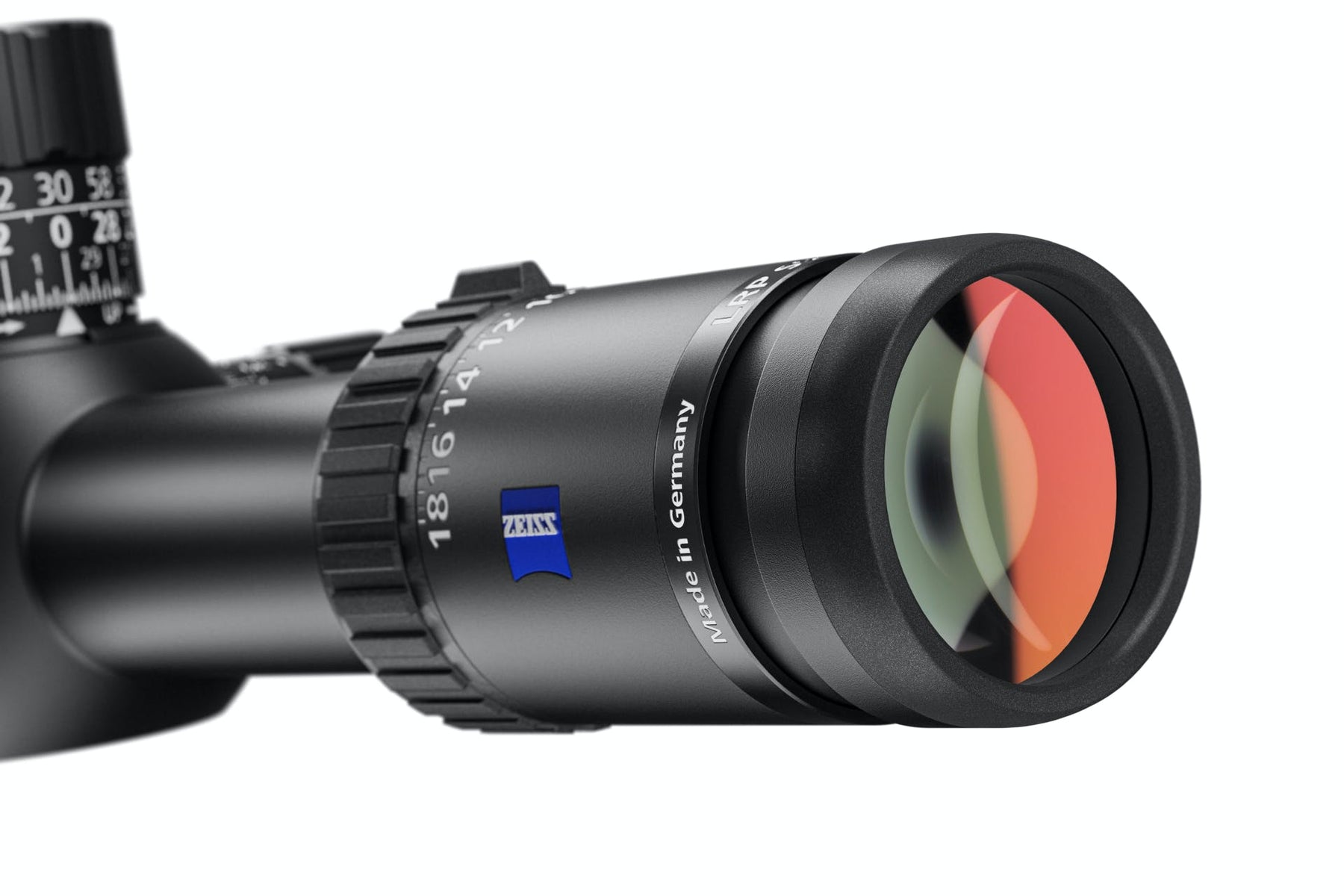

High-performance optics
Premium optical design with SCHOTT glass, fluoride lens elements and ZEISS T* coatings allows for optimum target identification, resolution of target and maximum light transmission of 90%.
Compact and heavy-duty riflescope
Final validation of the design proves the ZEISS LRP S5 riflescopes withstand multiple shock tests of an enormous 1,500 g-force. Design requirements also include initial shock testing of over 800 impact cycles at 1,000 g-force.
A clear view, whatever the weather
Sooner or later, your shooting time and bad weather will collide. This is why ZEISS developed LotuTec®. A protective exterior lens coating for ZEISS optics that enables a clearer and unhindered view in all weather conditions. It helps to greatly repel rain, snow, dust, and fingerprints, and makes lens cleaning easier.
ZEISS T* Coating
ZEISS T* coating is a guarantee of the brilliant, high-contrast images which you will experience above all in adverse light conditions and in the twilight. Behind it, however, there is no specific formula for building up the layers. Instead, it is a technology that is constantly adjusted to suit new glass materials and requirements, which varies from lens to lens.
ZEISS LRP S5
Your demands for excellent optics at PRS and NRL competitions are met with the all-new LRP S5. Both models utilize a 34 mm main tube, European-style fast-focus eyepiece, Ballistic Stop elevation turret (with 40.7 MRAD or 140 MOA of total elevation travel), and an external locking windage turret.
Performance
Magnification |
3.6 – 18 × |
Effective lens diameter |
50 mm |
Light transmission |
90% |
Exit pupil diameter |
9.3 – 2.8 mm |
Twilight factor |
13.4 – 30.0 |
Field of view at 100 m (yds) |
10.0 – 2.0 m (30 – 6 ft) |
Objective viewing angle |
5.7° – 1.1° |
Diopter adjustment range |
+ 2.0 | − 3.0 dpt |
Eye relief |
90 mm (3.54 ") |
Parallax setting |
25 m – ∞ (27 yds – ∞) |
Vertical adjustment range at 100 m |
40,7 MRAD | 140 MOA |
Lateral adjustment range at 100 m |
24 MRAD | 60 MOA |
Adjustment per click at 100 m |
0,1 MRAD | 0,25 MOA |
Centre tube diameter |
34 mm |
Eyepiece tube diameter |
46 mm |
Objective tube diameter |
56 mm |
Features
LotuTec | Nitrogen filled |
+ | + |
Water resistance |
400 mbar |
Physical
Operating temperature |
− 25°C | + 56°C (− 13°F | + 133°F) |
Length |
330 mm (13.0 ") |
Weight (without inner rail) |
930 g (32.8 oz) |
Weight (with inner rail) |
− |
The ZF-MOAi smart reticle was designed with precision shooting and long-range hunting in mind. This is a great reticle for the most challenging shots in the field and on the range. The clean and clutter-free reticle utilizes hash marks that represent 1 MOA (minute of angle), and even numbers are displayed for fast visual reference. The windage dots below centerline are placed at 2 MOA increments, so that you can easily confirm the wind’s influence on the bullet’s impact down-range. The floating center point of aim provides a precise hold on the most difficult targets.
