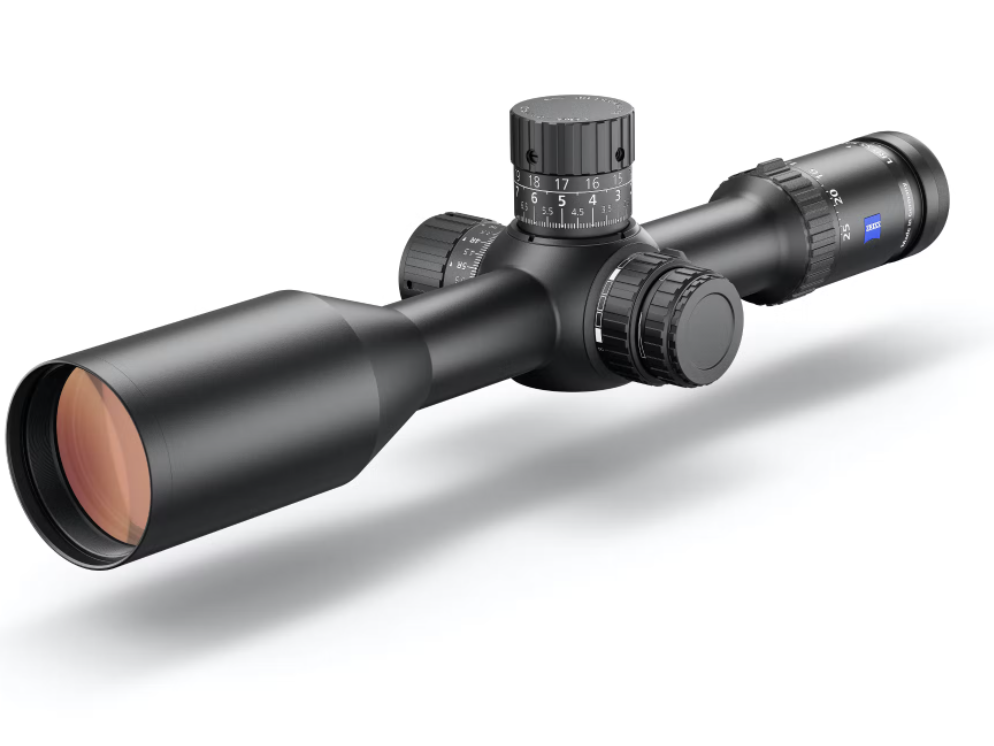

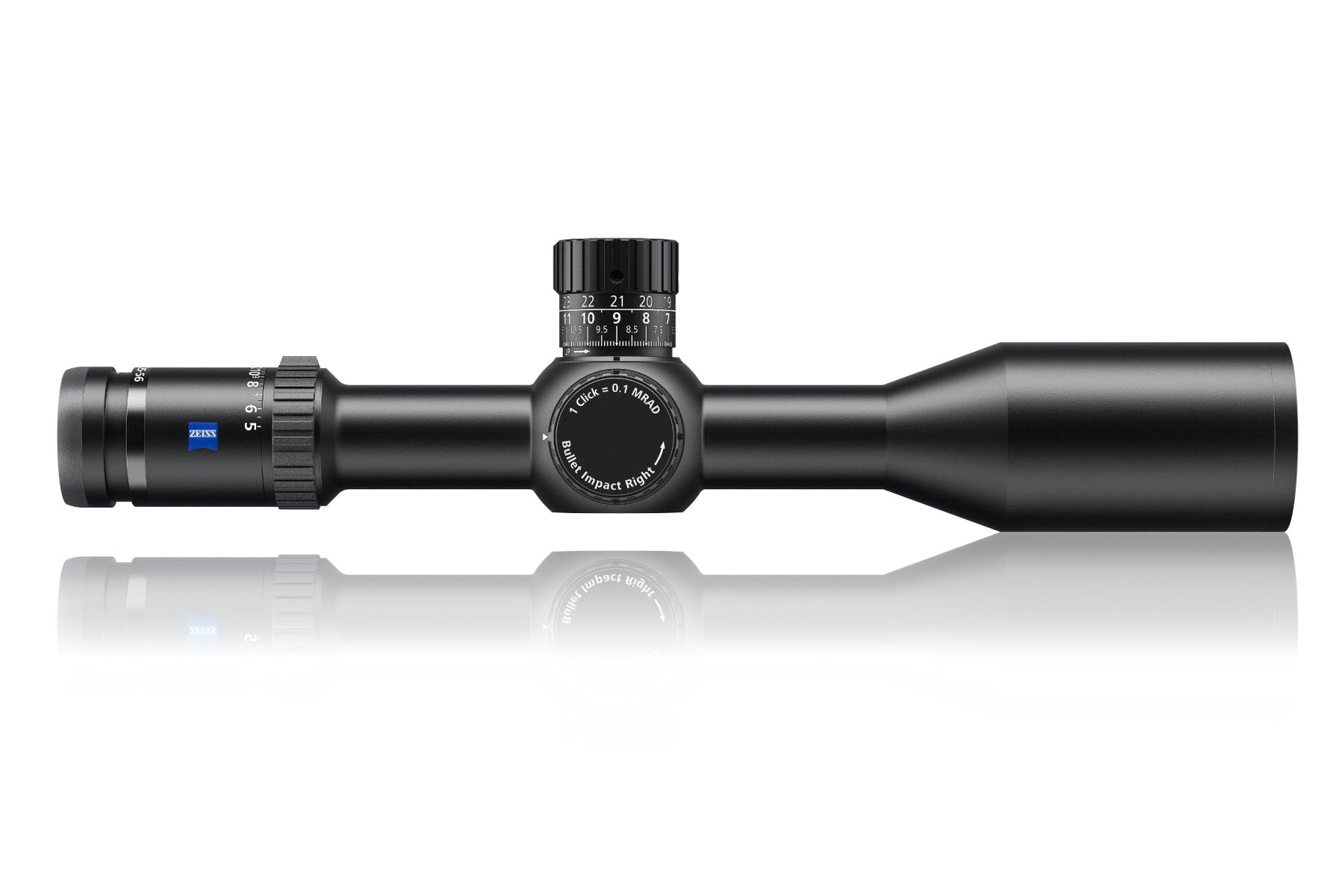

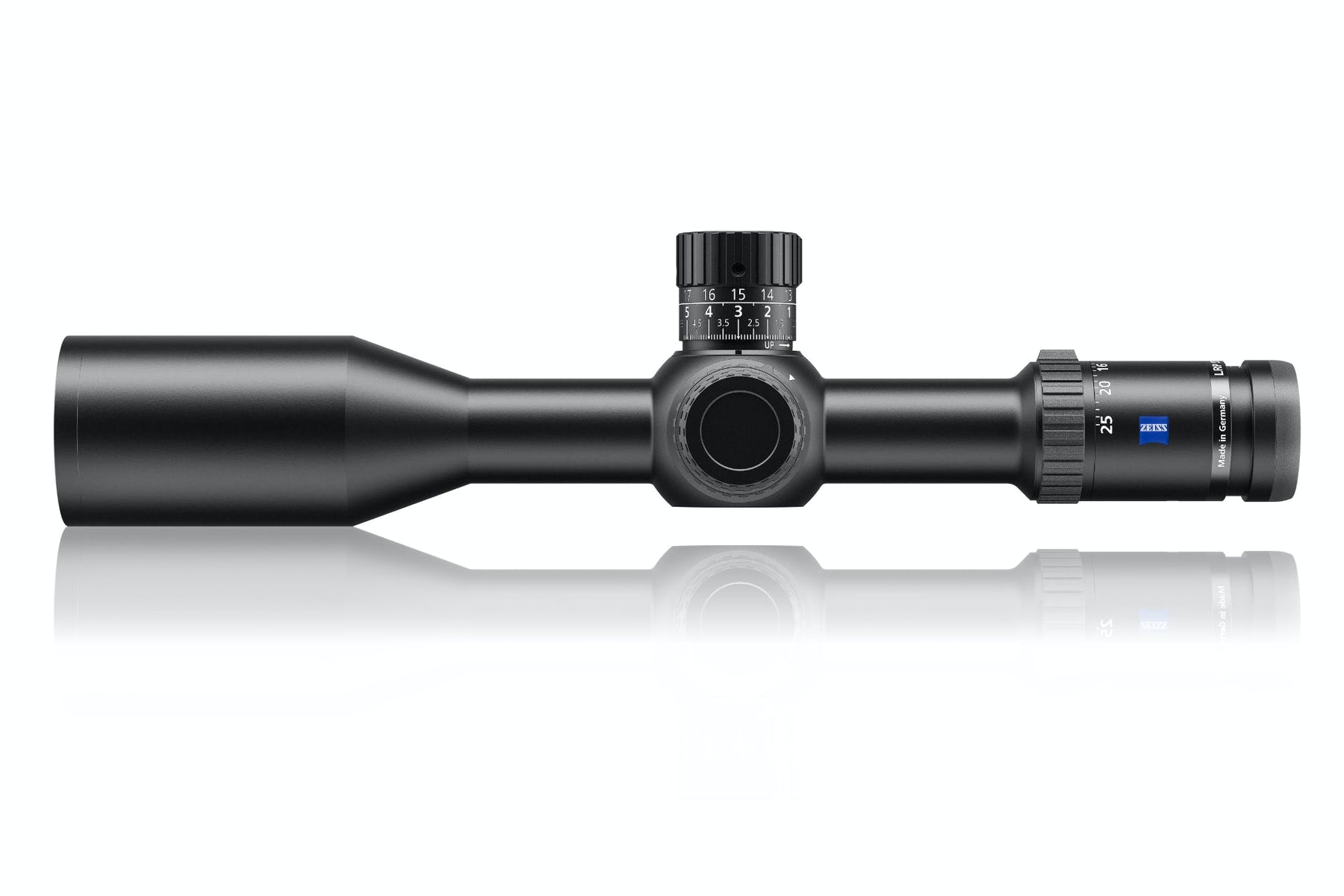

ZEISS LRP S5 5-25x56 ZF-MRi

Regular price $6,229.00
/

The ZEISS LRP S5 525-56 is a first focal plane riflescope with a 34 mm main tube, and provides a massive amount of total elevation travel out-of-the-box, which allows the shooter to engage targets to 1,500 yards | 1,375 meters - and beyond. When used in PRS and NRL type competitions, the riflescope will give you the edge to not just compete - but to win. This model is available in both Milliradian and Minute-of-Angle configurations.

It offers the most popular magnification range for precision rifle competitions, and is an exceptional choice on a variety of rifle platforms.

With a higher magnification setting, the ZEISS LRP S5 5-25x56 model is also ideal for other forms of target shooting, testing ammunition, load development and long-range hunting.

Best-in-class total elevation travel

A massive total elevation travel of 40.7 MRAD or 140 MOA allows the ZEISS LRP S5 to be more capable than your ammunition – and engage targets up to 1,500 yards and beyond out-of-the-box.

Daylight visible illuminated reticle

Digitally controlled diffractive reticle illumination technology delivers an exceptionally bright point of aim – regardless of the amount of incoming light – allowing you to confirm precise shot placement on target.

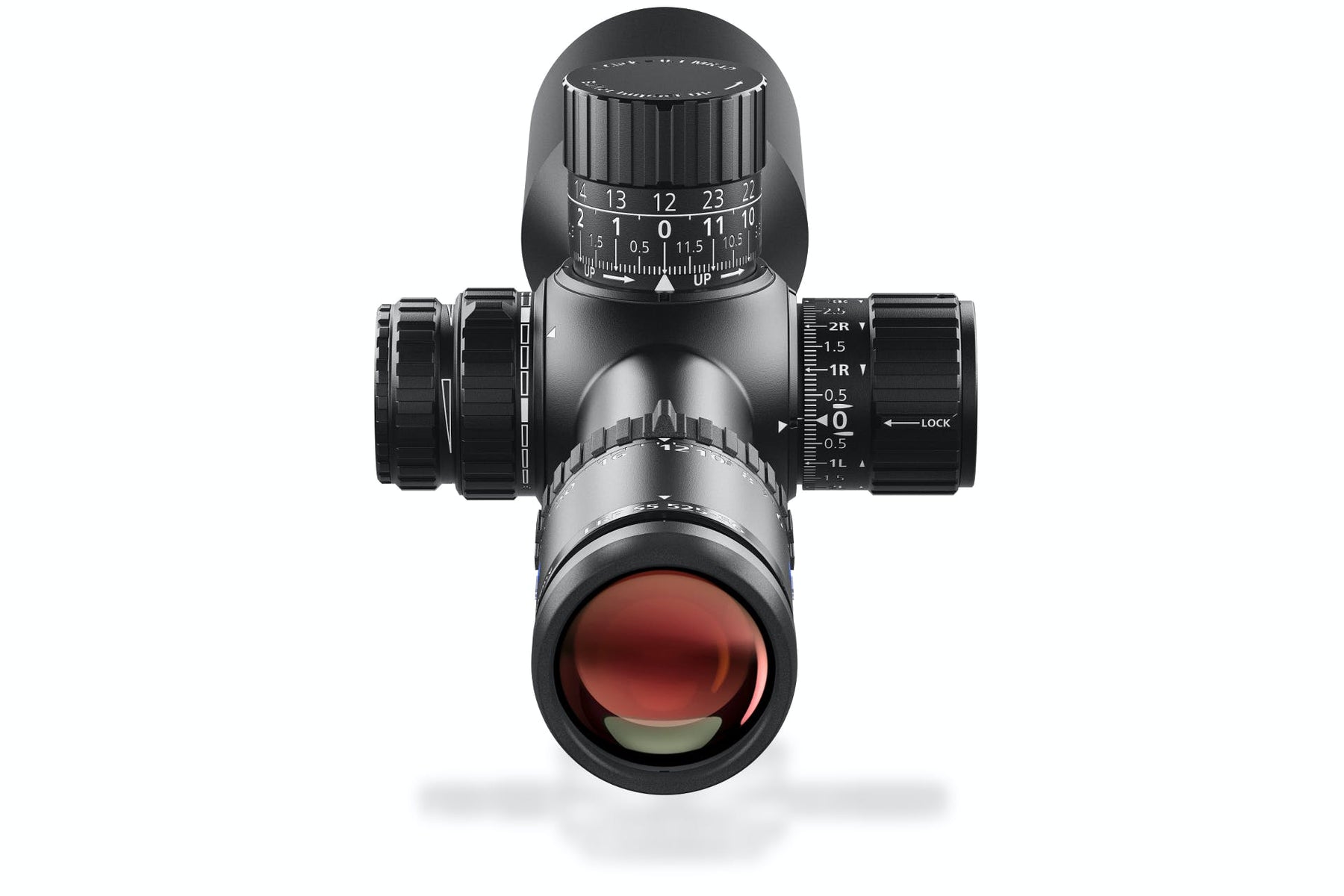

Highly repeatable and tactile turrets

Precise adjustments provide you with absoluteassurance of making the most accurate shotspossible – regardless of distance.

High-performance optics

Premium optical design with SCHOTT glass, fluoride lens elements and ZEISS T* coatings allows for optimum target identification, resolution of target and maximum light transmission of 90%.

Compact and heavy-duty riflescope

Final validation of the design proves the ZEISS LRP S5 riflescopes withstand multiple shock tests of an enormous 1,500 g-force. Design requirements also include initial shock testing of over 800 impact cycles at 1,000 g-force.

A clear view, whatever the weather

Sooner or later, your shooting time and bad weather will collide. This is why ZEISS developed LotuTec®. A protective exterior lens coating for ZEISS optics that enables a clearer and unhindered view in all weather conditions. It helps to greatly repel rain, snow, dust, and fingerprints, and makes lens cleaning easier.

section-finest-illuminated-dot

ZEISS T* Coating

ZEISS T* coating is a guarantee of the brilliant, high-contrast images­­ which you will experience above all in adverse light conditions and in the twilight. Behind it, however, there is no specific formula for building up the layers. Instead, it is a technology that is constantly adjusted to suit new glass materials and requirements, which varies from lens to lens.

ZEISS LRP S5

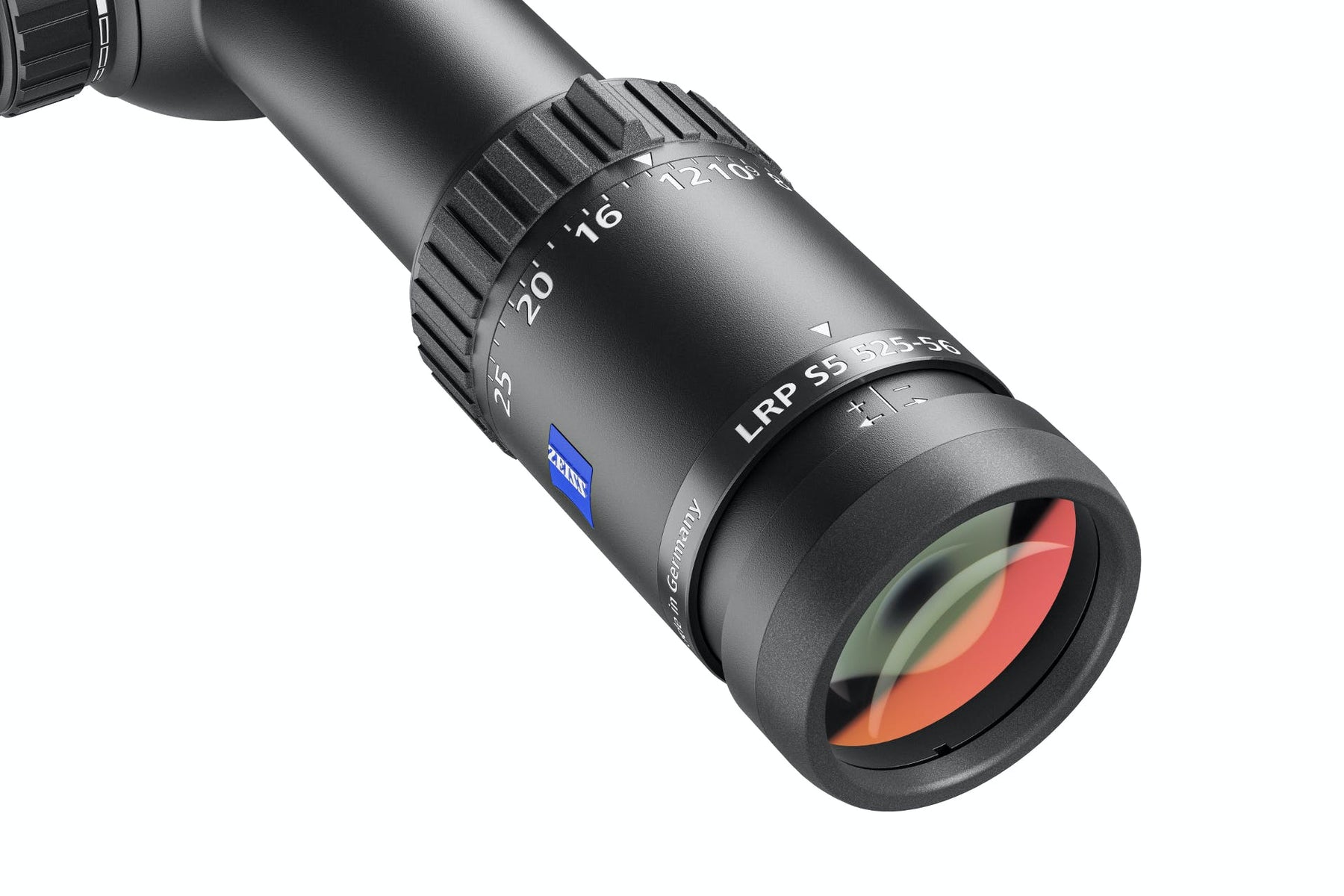

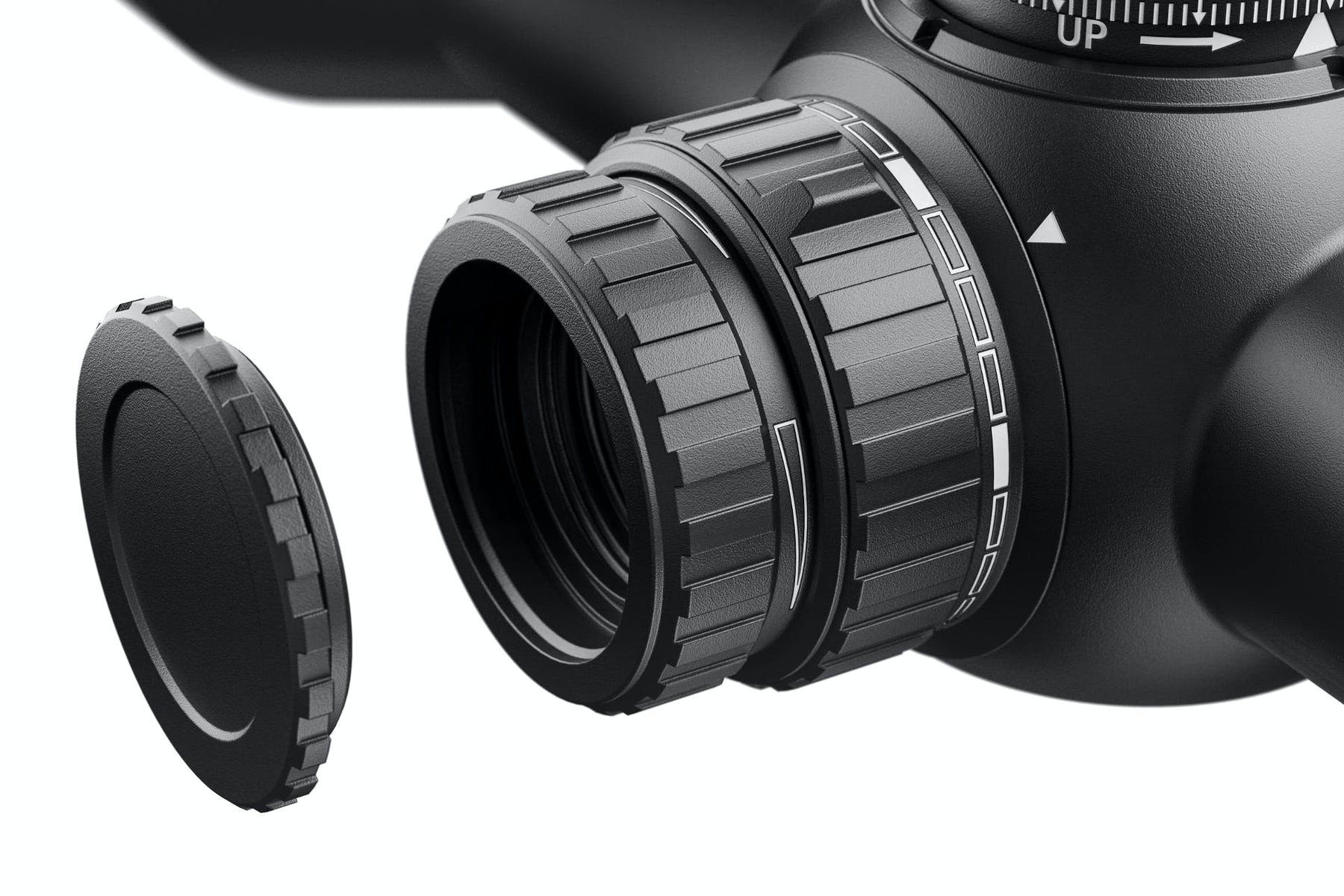

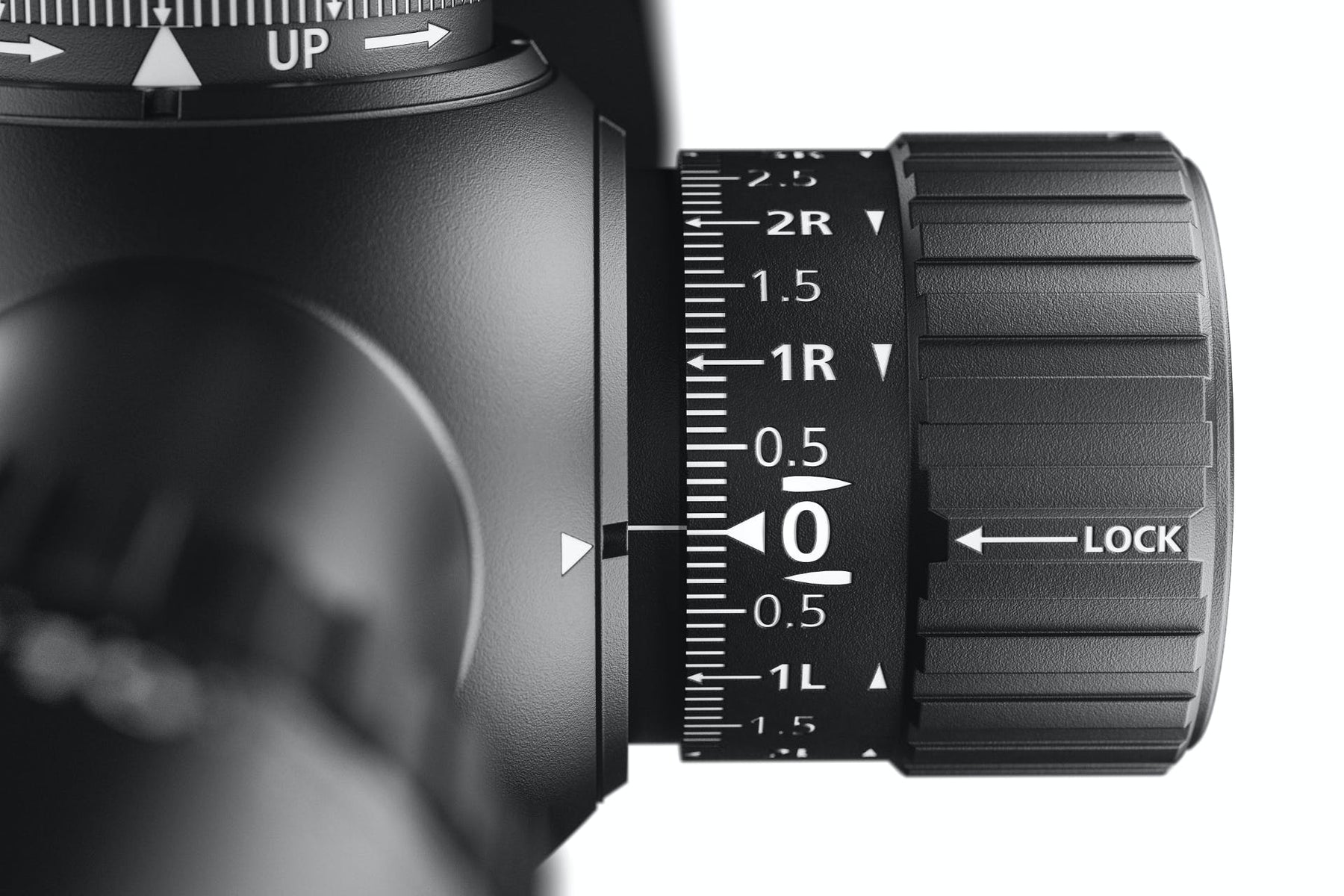

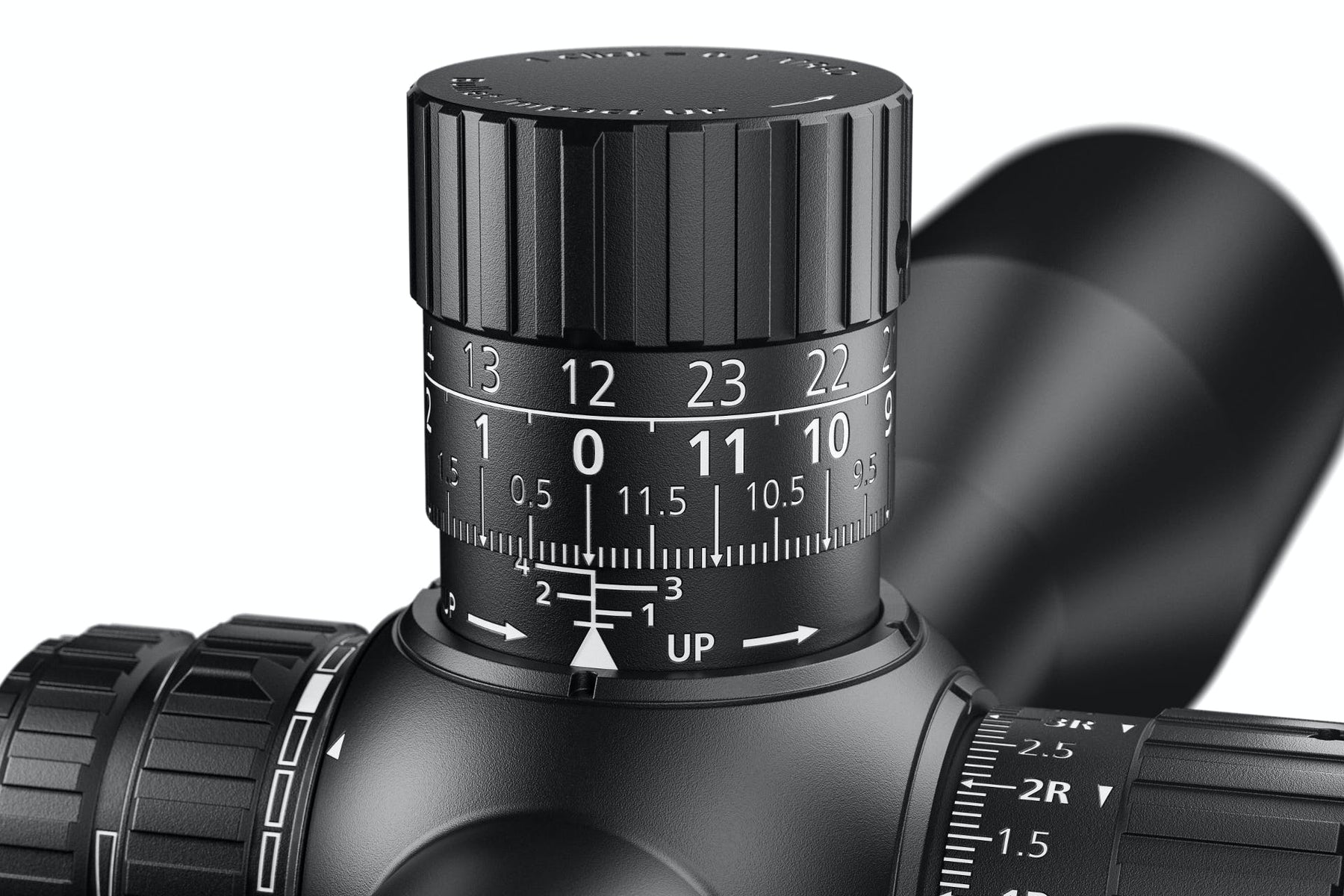

Your demands for excellent optics at PRS and NRL competitions are met with the all-new LRP S5. Both models utilize a 34 mm main tube, European-style fast-focus eyepiece, Ballistic Stop elevation turret (with 40.7 MRAD or 140 MOA of total elevation travel), and an external locking windage turret.

Performance

Magnification

5 – 25 ×

Effective lens diameter

56 mm

Light transmission

90%

Exit pupil diameter

9.2 – 2.4 mm

Twilight factor

16.7 – 37.4

Field of view at 100 m (yds)

7.5 – 1.5 m (23 – 5 ft)

Objective viewing angle

4.3° – 0.8°

Diopter adjustment range

+ 2.0 | − 3.0 dpt

Eye relief

90 mm (3.54 ")

Parallax setting

25 m – ∞ (27 yds – ∞)

Vertical adjustment range at 100 m

40,7 MRAD | 140 MOA

Lateral adjustment range at 100 m

24 MRAD | 60 MOA

Adjustment per click at 100 m

0,1 MRAD | 0,25 MOA

Centre tube diameter

34 mm

Eyepiece tube diameter

46 mm

Objective tube diameter

62 mm

Features

LotuTec | Nitrogen filled

+ | +

Water resistance

400 mbar

Physical

Operating temperature

− 25°C | + 56°C (− 13°F | + 133°F)

Length

396 mm (15.6 ")

Weight (without inner rail)

1.030 g (36.3 oz)

Weight (with inner rail)

Reticle ZF-MRi | Reticle 16Illuminated

The ZF-MRi smart reticle was designed with professional input from active competitors and instructors. Its purpose is to dominate at PRS and NRL matches. The milliradian (MRAD) reticle incorporates a "tree-style" primary structure with useful hash marks, dots, and reference numbers –without the clutter. The points-of-aim and holds are represented in 0.2, 0.5, and 1.0 MRAD increments; and even numbers are displayed for fast and intuitive visual reference. If winning is your goal, then the ZF-MRi reticle was made for you.

section-finest-illuminated-dot
